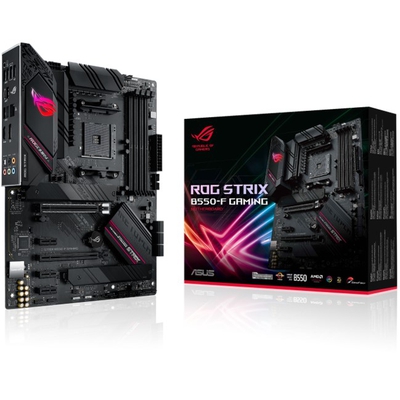

Placa Madre Asus ROG STRIX B550-F GAMING, AM4, HDMI, DisplayPort, USB 3.2

DETALLES DEL PRODUCTO
- Garantía del Producto

  36 meses

  Condición

  Nuevo
ESPECIFICACIONES
- CPU

  AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

  * Refer to www.asus.com for CPU support list

  Chipset

  AMD B550

  Memory

  AMD Ryzen^TM 4000 G-Series Processor

  4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

  OptiMem II

  Dual Channel Memory Architecture

  ECC Memory (ECC mode) support varies by CPU.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  Graphic

  1 x HDMI 2.1(4K@60HZ)

  1 x DisplayPort 1.2

  *Graphics specifications may vary between CPU types.

  Integrated Graphics Processor

  Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology

  Expansion Slots

  AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

  AMD B550 Chipset

  1 x PCIe 3.0 x16 (x4 mode) *

  3 x PCIe 3.0 x1

  1 x PCIe 3.0 x16 (x16 mode)

  1 x PCIe 4.0 x16 (x16 mode)

  Storage

  AMD Ryzen^TM 4000 G-Series Processors :

  AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

  Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

  1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

  AMD B550 Chipset :

  1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

  1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  6 x SATA 6Gb/s port(s)

  Support Raid 0, 1, 10

  LAN

  Intel® I225-V 2.5Gb Ethernet

  ASUS LANGuard

  Audio

  - Audio Shielding

  - Premium Japanese audio capacitors

  - Audio Cover

  - Optical S/PDIF in port(s) at back panel

  ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

  - Dual OP Amplifiers

  - Impedance sense for front and rear headphone outputs

  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

  - High quality120dBSNR stereo playback outputand113dBSNR recording input

  - Supports up to 32-Bit/192kHz playback *

  Audio Feature :

  - SupremeFX Shielding™ Technology

  - Gold-plated jacks

  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

  USB Ports

  Front USB Port ( Total 6 )

  Rear USB Port ( Total 8 )

  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

  2 x USB 3.2 Gen 1 port(s)

  2 x USB 2.0 port(s)

  4 x USB 2.0 port(s)

  Software Features

  ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

  ASUS Special Features

  Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot

  Back I/O Ports

  1 x BIOS FlashBack^™ Button(s)

  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)

  1 x Intel® I225-V 2.5Gb Ethernet

  4 x USB 3.2 Gen 1

  1 x DisplayPort

  1 x HDMI

  2 x USB 2.0

  1 x Optical S/PDIF out

  5 x Gold-plated audio jacks

  ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

  Internal I/O Ports

  1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

  1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

  1 x Thunderbolt header(s)

  1 x CPU Fan connector(s)

  1 x CPU OPT Fan connector(s)

  3 x Chassis Fan connector(s)

  1 x AIO_PUMP connector

  1 x AAFP connector

  2 x Aura RGB Strip Header(s)

  1 x Addressable Gen 2 header(s)

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  6 x SATA 6Gb/s connector(s)

  1 x 24-pin EATX Power connector(s)

  1 x 8-pin ATX 12V Power connector(s)

  1 x 4-pin ATX 12V Power connector(s)

  1 x System panel(s)

  1 x Thermal sensor connector(s)

  1 x Clear CMOS jumper(s)

  Accessories

  1 x M.2 SSD screw package(s)

  1 x M.2 Rubber Package(s)

  User´s manual

  4 x SATA 6Gb/s cable(s)

  1 x Supporting DVD

  1 x ROG Strix stickers

  1 x Cable ties pack(s)

  1 x Extension cable for Addressable LED

  1 x ROG Thank you card

  BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

  Manageability

  WOL by PME, PXE

  Operating System

  Windows® 10 64-bit

  Form Factor

  ATX Form Factor

  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  Note

  * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

DESCRIPCIÓN

Adquiere tu Placa Madre Asus ROG STRIX B550-F GAMING, AM4, HDMI, DisplayPort, USB 3.2, hoy mismo a un excelente precio.

NUMERO DE PARTE	ROG STRIX B550-F GAMING
Generación del Procesador	Ryzen \| 3G, 4G, 5G
Conector USB	USB 2.0 / 3.2
Socket del Motherboard	AMD AM4 (Gaming)
Puertos de Video	HDMI / DisplayPort

No te quedes sin ver modelos similares a este producto en nuestro álbum de Placas Madre. Recuerda que podemos llevar tu producto a la puerta de tu hogar o efectuar envíos a todo el Perú. Somos M&V Technologies la tienda informática online que el Perú prefiere.
